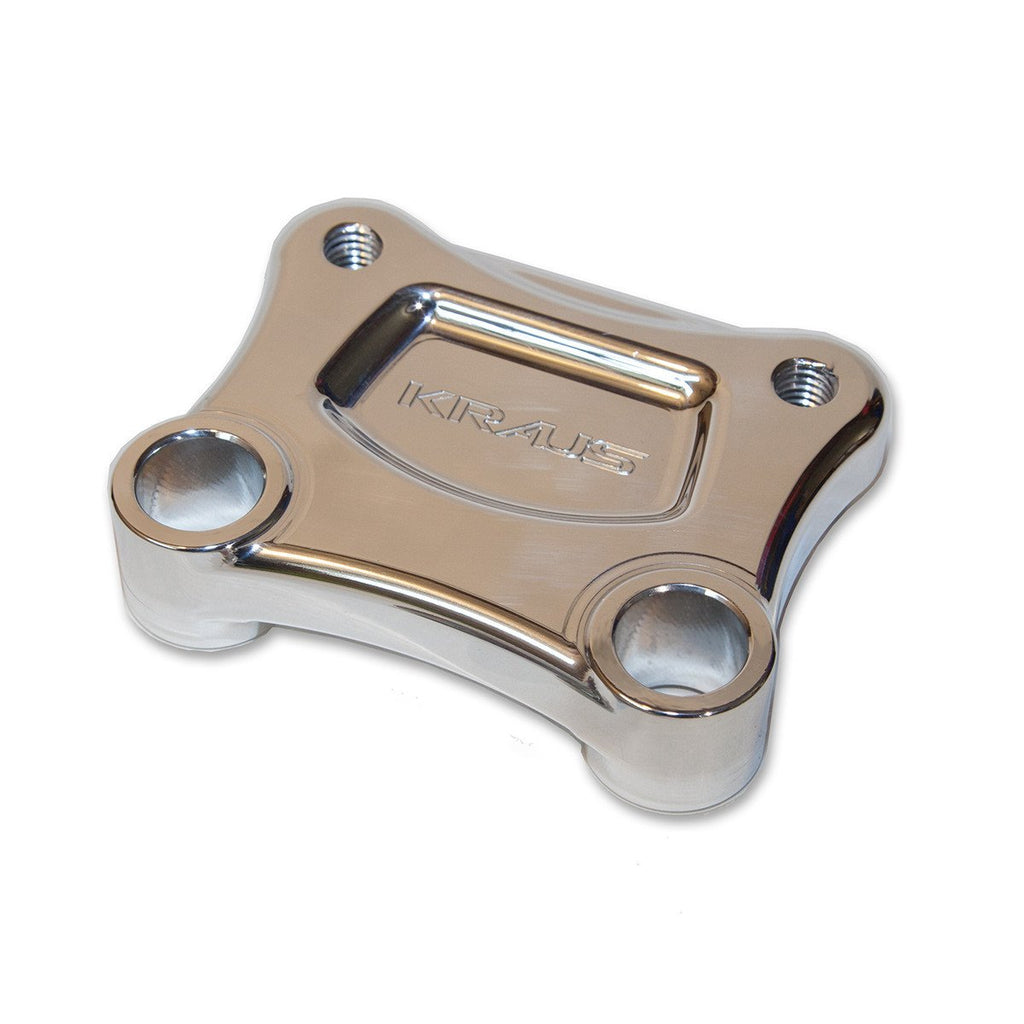

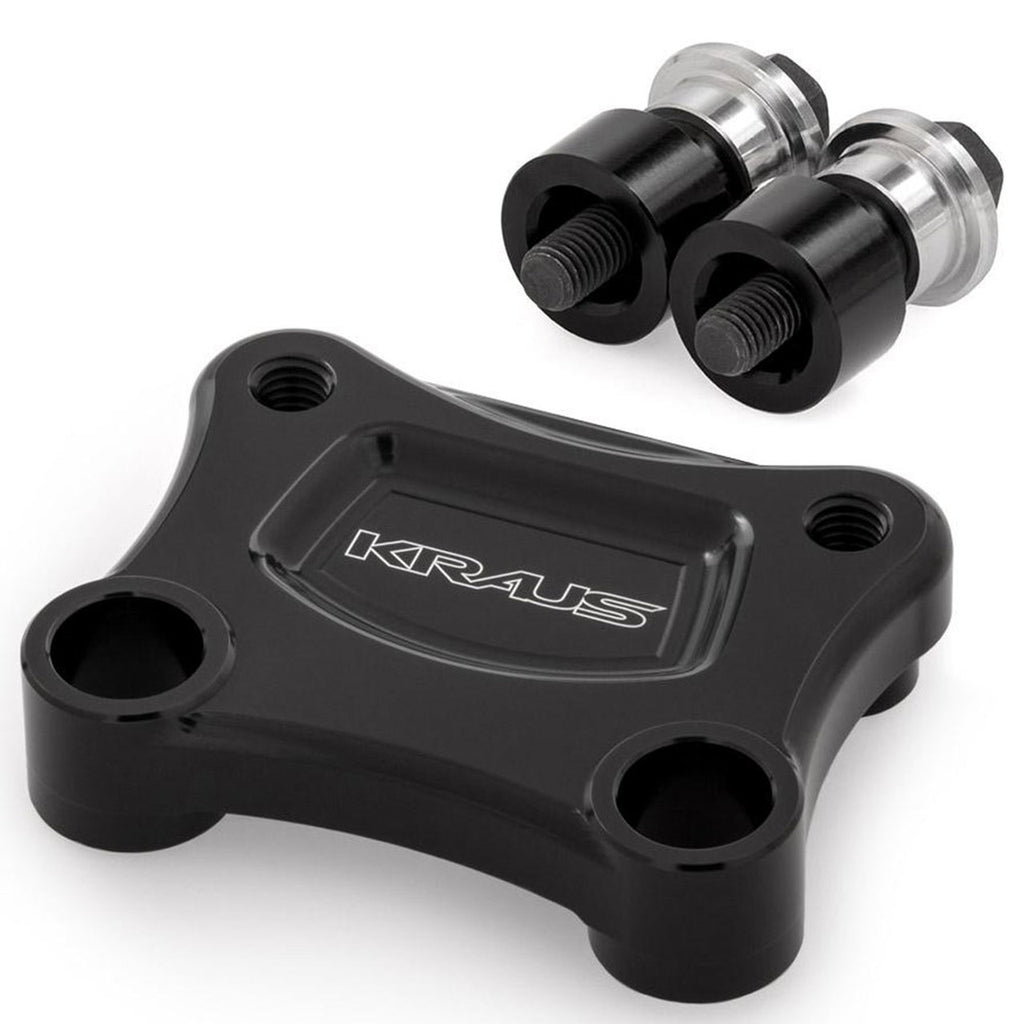

Kraus T-Rex Pullback Plate – Harley Handlebar Riser Adapter

BRING THE BARS BACK. TAKE CONTROL OF YOUR COCKPIT.

Your handlebars shouldn't feel like they're on the other side of the motorcycle.

The Kraus Motor Co. T-Rex Pullback Plate is designed to reposition your handlebar risers for a more accessible riding position while providing additional clearance for custom handlebar setups.

Mounted to the upper triple tree, the T-Rex moves your handlebar mounting position 2.5 inches toward the riderwhile adding 1 inch of height.

Originally designed with Street Glide and Electra Glide cockpit configurations in mind, the T-Rex is especially useful for riders looking to install straight risers or T-bars without interference from the factory navigation screen and stereo.

Whether you're building a performance bagger or dialing in a custom Harley cockpit, the T-Rex gives you more flexibility in how your bars are positioned.

2.5" BACK. 1" UP. A BETTER WAY TO POSITION YOUR BARS.

Why Run the Kraus T-Rex Pullback Plate?

Your handlebar position affects comfort, reach, posture, and the way you interact with your motorcycle.

On many Harley-Davidson Touring models, the factory dash, navigation screen, and stereo can limit the placement of aftermarket handlebars and risers.

The Kraus T-Rex addresses this by relocating the riser mounting position toward the rider.

Key Benefits

• Moves handlebar mounts 2.5" toward the rider

• Adds 1" to overall handlebar setup height

• Creates additional clearance for compatible straight risers and T-bars

• Helps accommodate custom performance bagger cockpit configurations

• Designed to work with Kraus Isolated Risers

• Can be used with other compatible riser systems when the correct bushings are installed

• Provides more flexibility when selecting handlebar height and reach

Stop building your cockpit around factory limitations.

2.5 Inches of Pullback

The T-Rex moves the handlebar mounting position 2.5 inches rearward.

This can make a significant difference for riders who want the bars closer without relying entirely on pullback built into the risers or handlebars themselves.

Why Pullback Matters

A more accessible handlebar position may help:

• Reduce the need to reach forward

• Support a more comfortable riding posture

• Improve access to the hand controls

• Create more flexibility when selecting straight risers

• Customize the cockpit around the rider

The ideal position depends on your height, arm length, seat, and handlebar configuration.

Adds 1 Inch of Height

Along with its 2.5-inch rearward offset, the T-Rex adds 1 inch of height to the riser and handlebar setup.

This additional height needs to be considered when calculating your overall hand position.

IMPORTANT: The T-Rex adds 1 inch to the total height of a Kraus Isolated Riser and handlebar combination.

Designed for Street Glide & Electra Glide Cockpits

The T-Rex is particularly useful on Harley-Davidson motorcycles with batwing fairings.

On these models, factory navigation screens, stereos, and dash components can create clearance challenges when installing straight risers or T-bars.

By moving the riser mounting position toward the rider, the T-Rex can provide the additional clearance needed for compatible handlebar setups.

Ideal Applications

• Street Glide cockpit upgrades

• Electra Glide handlebar conversions

• Straight riser installations

• T-bar conversions

• Performance bagger builds

• Custom handlebar positioning

More room to build the cockpit you actually want.

Works with Kraus Isolated Risers

Already running Kraus Isolated Risers?

The T-Rex is designed to integrate with that system.

The supplied T-Rex hardware supports installation with Kraus Isolated Risers without requiring the separate polyurethane bushings specified for other riser arrangements.

Not Running Kraus Isolated Risers?

If you're using another compatible riser system, additional Bagger Polyurethane Bushings are required for installation beneath the risers in the T-Rex Plate.

Confirm the correct bushing arrangement before ordering.

Kraus T-Rex Handlebar Height Guide

The T-Rex adds 1 inch of height to the overall setup.

Kraus provides the following total hand-position heights measured from the top of the stock triple tree.

With Fly Bars

With ODI Bars

These are Kraus's published combination measurements, not universal measurements for every handlebar design.

Actual grip position can also depend on handlebar rotation and the final installation.

Harley-Davidson Fitment

The Kraus T-Rex Pullback Plate is suggested for Street Glide and Electra Glide applications, with additional applications possible depending on the motorcycle and installation requirements.

Touring / Performance Bagger

• Street Glide

• Electra Glide

• Select other Touring models

• Road Glide applications may require modification

Milwaukee-Eight Softail

• 2018-Up M8 Softail applications, subject to mounting compatibility

Dyna / FXR / Sportster

• Select Dyna, FXR, and Sportster applications

• Additional bushings required

Important Fitment Restrictions

2024-up models with the factory nacelle have a clearance conflict with the T-Rex Plate.

Nacelle will need to be trimmed or removed depending on preference.

Fitment must be confirmed for the specific motorcycle, triple tree, and cockpit configuration.

The T-Rex should not be assumed to fit every Harley-Davidson model without modification.

IMPORTANT: Factory Ignition Switch & Steering Lock

Installing the Kraus T-Rex Pullback Plate prevents continued use of the stock key switch and steering lock in their original configuration on applicable motorcycles.

You will need to address the factory ignition switch arrangement before installation.

Possible solutions may include:

• Relocating the ignition switch

• Using an appropriate compatible ignition conversion

• Having a qualified Harley-Davidson dealership evaluate available programming options

Some motorcycles may be eligible for an optional CVO-style ignition flash, but availability depends on the specific model and its electronics.

Do not assume your motorcycle can be reprogrammed to eliminate the factory key switch.

Consult a qualified Harley-Davidson technician or dealership before purchasing if your motorcycle uses this ignition and steering lock arrangement.

Additional Bushing Requirements

The correct bushing arrangement depends on your riser setup.

If You're Running Kraus Isolated Risers

For the specified Touring installation, the T-Rex kit includes the components needed to integrate with compatible Kraus Isolated Risers.

For Dyna, FXR, and Sportster applications, Kraus recommends to run Solid Bushings.

If You're NOT Running Kraus Isolated Risers

Compatible OEM Touring-style polyurethane bushings are recommended or required depending on the application.

Verify the mounting hardware and bushing requirements before installation.

Installation & Compatibility Notes

Handlebar mounting components are safety-critical.

Before installation:

1. Confirm your motorcycle and upper triple tree are compatible.

2. Determine whether additional riser bushings are required.

3. Address any factory ignition switch or steering lock interference.

4. Verify clearance with the fairing, dash, navigation screen, and stereo.

5. Confirm sufficient brake line, clutch line, throttle, and electrical wiring length.

6. Check steering clearance throughout the full range of motion.

7. Follow Kraus installation instructions and specified torque requirements.

8. Confirm that all controls operate correctly before riding.

Additional modification or professional installation may be required.

Build Your Ideal Harley Cockpit

The T-Rex Pullback Plate works as part of a complete handlebar positioning system.

Pair it with compatible:

• Kraus Isolated Risers

• Kraus Straight Risers

• Kraus Fly Bars

• ODI Handlebars

• Kraus gauge mounting accessories

• Riser bushings

• Performance grips

• Adjustable brake and clutch levers

Your handlebars, risers, pullback, gauges, and controls should all work together.

BUILD THE POSITION. NOT JUST THE LOOK.

Why Buy from Imzz Elite?

At Imzz Elite, we know that building a performance Harley is about more than stacking parts on a motorcycle.

The right handlebar position, proper fitment, and a well-planned cockpit can make a real difference in how comfortable and connected you feel when riding.

We've been working with Harley-Davidson performance parts since 1996, helping riders find quality components for builds that are both functional and visually dialed in.

Performance parts. No-BS service. Since 1996.

GET YOUR BARS WHERE THEY BELONG.

The Kraus Motor Co. T-Rex Pullback Plate is designed to give you more control over your Harley-Davidson's handlebar positioning.

With 2.5 inches of rearward offset and 1 inch of additional height, it helps make compatible straight riser and T-bar setups possible while giving riders more flexibility in their cockpit geometry.

2.5" Handlebar Pullback

1" Additional Height

Designed for Compatible Kraus Isolated Risers

Straight Riser & T-Bar Clearance

Performance Harley Cockpit Upgrade

BRING THE BARS BACK. BUILD IT YOUR WAY.
