Baja Designs S1 Light Pod

The S1 Black LED Auxiliary Light Pod delivers big-light performance in an ultra-compact package. Designed from the ground up, the S1 packs 2,320 raw lumens into a 2.1″ × 2.1″ × 2.1″ housing, making it one of the most versatile auxiliary lights available for motorcycles, off-road vehicles, and utility applications.

Engineered by Baja Designs, the S1 uses a highly specialized reflector and LED combination to put usable light exactly where you need it—whether you’re riding technical trails, commuting in low visibility, or lighting up a campsite.

US Patent #11273751

🏁 Key Features & Benefits

• 2,320 raw lumens from a compact 2.1″ housing

• Multiple lens patterns for road, trail, and work applications

• Available with Clear or Baja Amber lenses

• uService™ design with replaceable lenses and optics

• MoistureBlock™ – waterproof, rainproof, fully submersible

• CopperDrive™ – LEDs driven at 100% output

• 5000K daylight color temperature reduces eye fatigue

• Hard-anodized & powder-coated aluminum housing

• Limited Lifetime Warranty

• 30-Day Satisfaction Guarantee

Available as single lights or pairs.

🔦 Lens Pattern

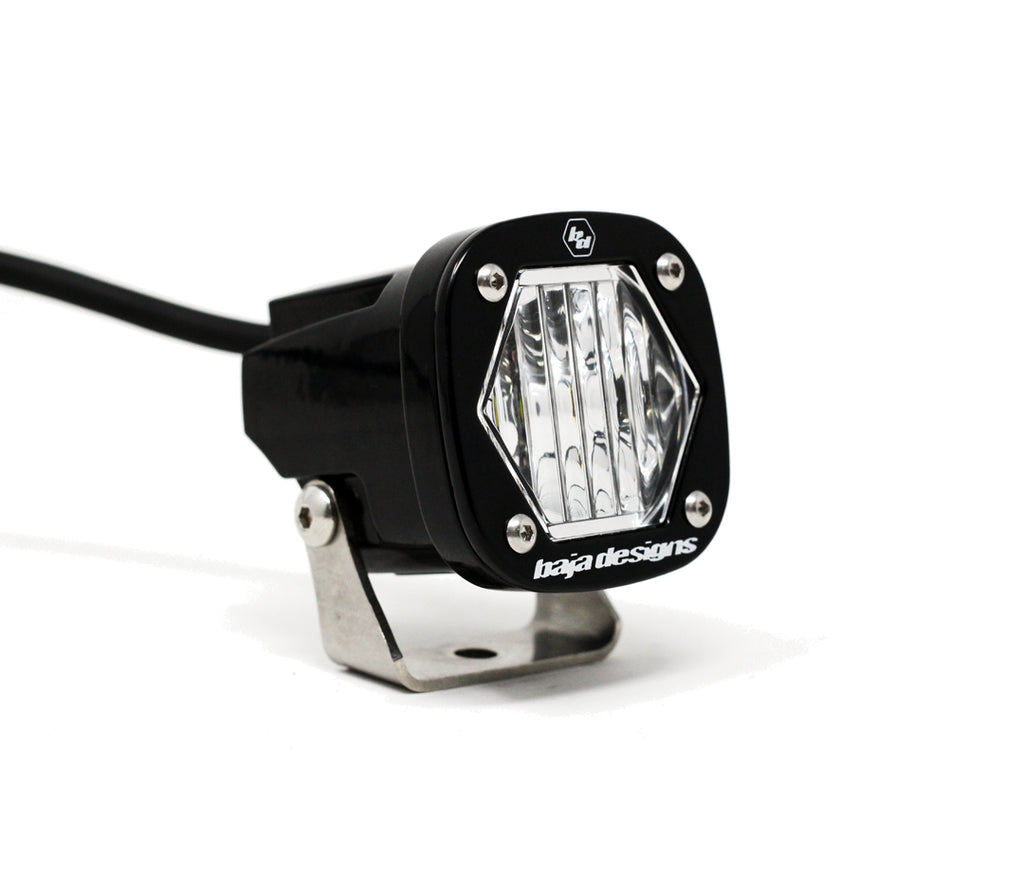

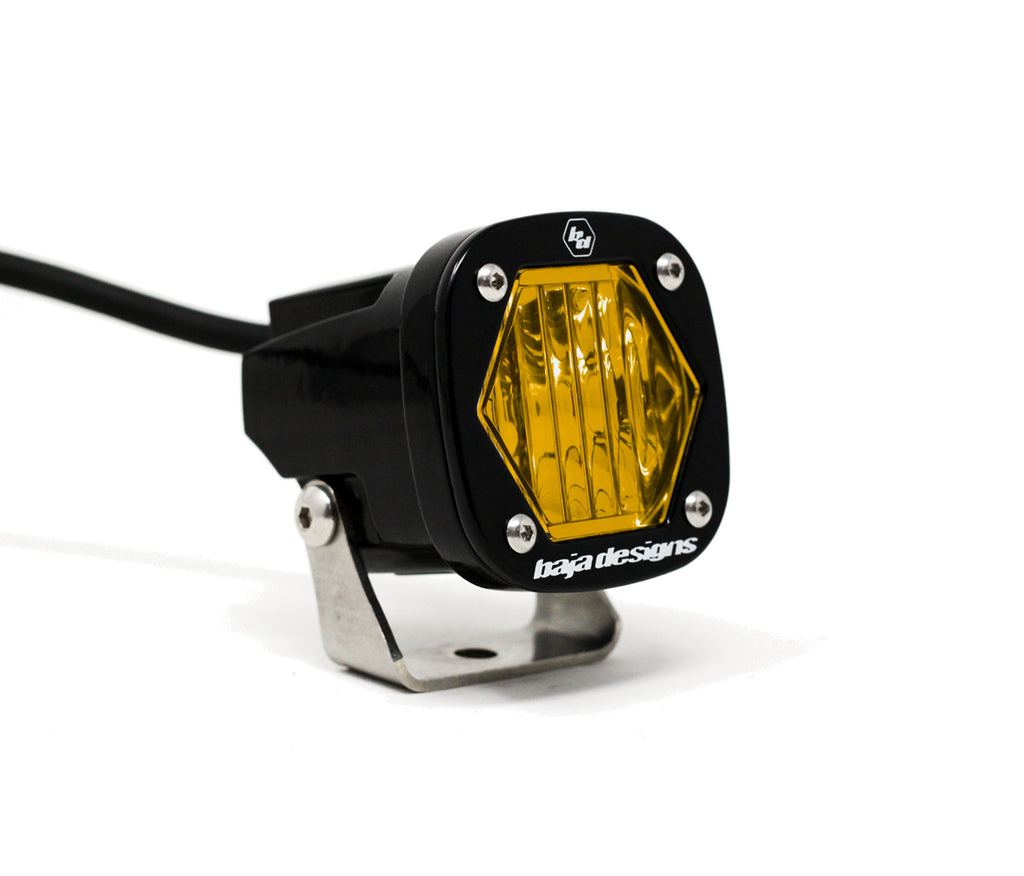

Wide Cornering

• 42° flattened horizontal beam

• Reduces blind spots and improves peripheral visibility

• Excellent for dust, rain, snow, fog, and wooded trails

• Ideal for zones 1 & 2 lighting

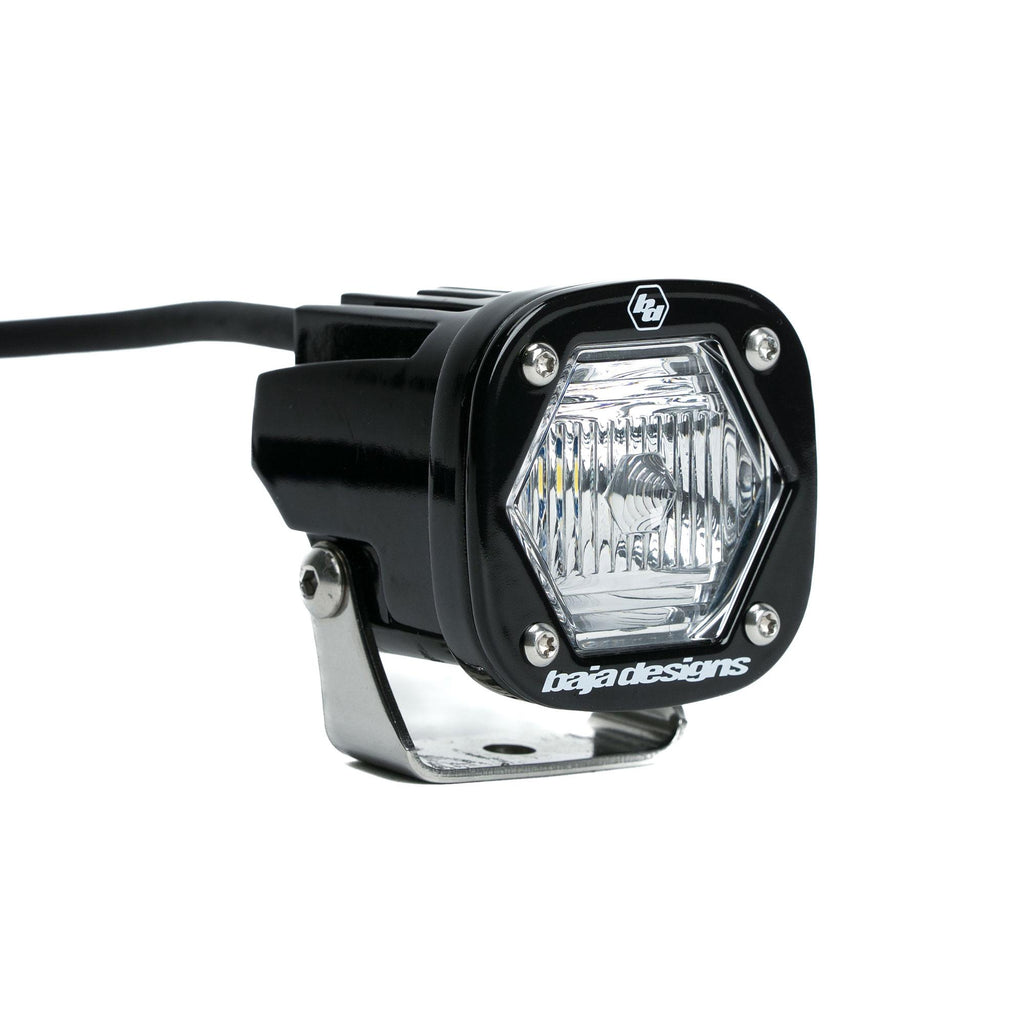

Trail (Moto-Specific)

• Designed for slower speeds and technical terrain

• Balanced vertical and horizontal spread

• Improved visibility when cresting ridges and navigating tight turns

• Ideal for dual-sport and single-track riding in 1st–3rd gear

🌈 Lens Color Options

Clear

• 5000K daylight output

• Natural color rendering and reduced eye fatigue

• Best for general riding and maximum visibility

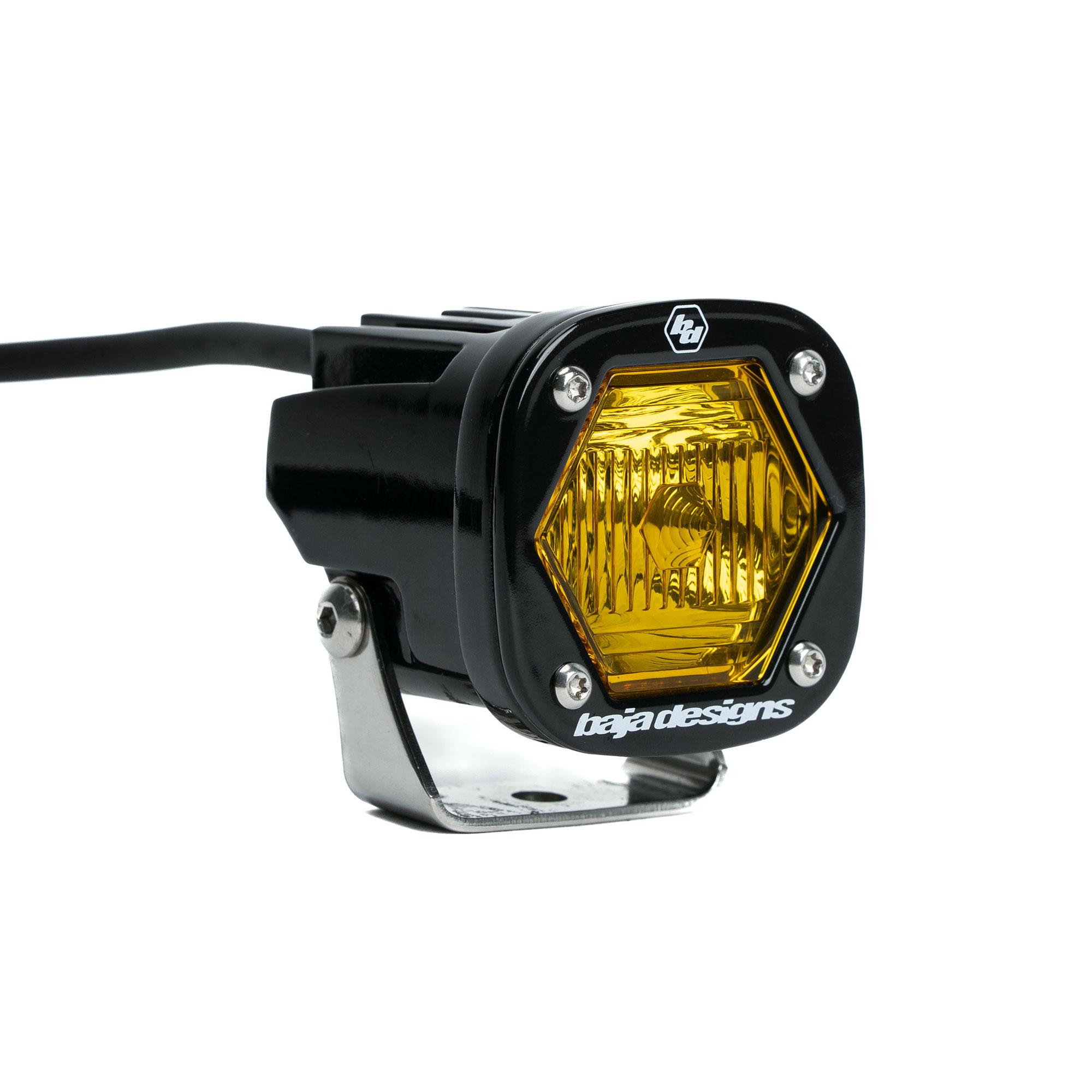

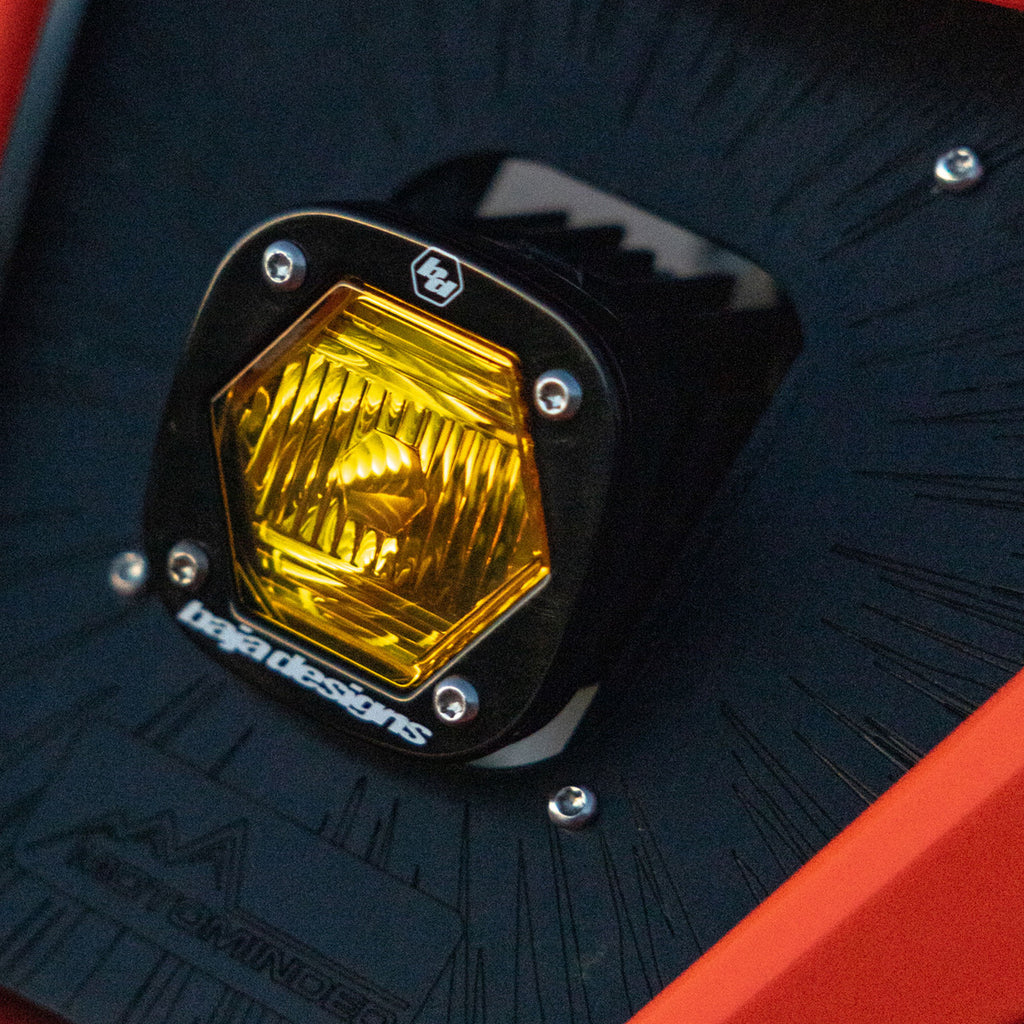

Baja Amber

• Optimized for dust, rain, snow, and fog

• Reduces glare and eye strain

• Improves contrast and terrain definition in poor conditions

📊 Effective Lighting Score (ELS™)

S1 Spot – Clear Lens

• Beam: 72°

• Intensity: 6.1

• Distance: 155′

• Effective Lumens: 1927

(ELS™ measures usable light—not just raw output.)

⚙️ Technical Specifications

• Lumens: 2,320

• Wattage: 19.6W

• Amperage: 1.42A

• Voltage Range: 9–28V

• LED Color Temp: 5000K

• Housing: Hard-anodized & powder-coated cast aluminum

• Lens Material: Hard-coated polycarbonate

• Mounting Hardware: Stainless steel (included)

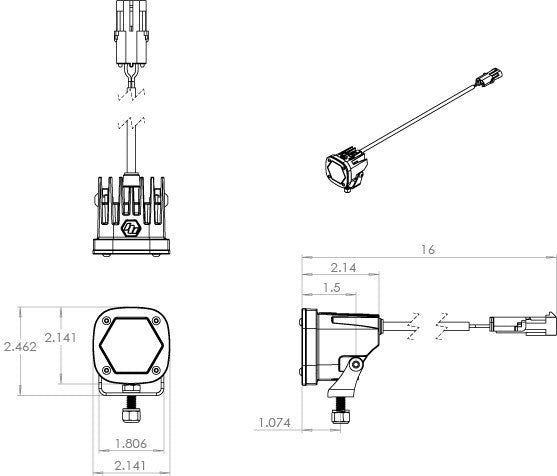

• Dimensions: 2.1″ × 2.1″ × 2.1″

• Weight: 0.4 lbs

• Rated Life: 49,930 hours

🛡 Durability & Compliance

• IP69K – Waterproof & pressure-wash safe (submersible to 9 ft)

• IK10 – High impact resistance

• Exceeds MIL-STD-810G durability testing

🧠 When to Choose the S1

• Ultra-compact auxiliary lighting

• Motorcycle, dual-sport, and ADV builds

• Trail riding, foggy conditions, or night work

• Riders who want maximum output with minimal size

FAQ

Q: Are these sold individually or as a pair?
A: The S1 is available as a single light or as a pair.

Q: Does the S1 include a wiring harness?
A: No. Wiring harnesses are sold separately depending on single or dual-light setups.

Q: Is the S1 waterproof?
A: Yes. It is IP69K rated and fully submersible.
