Description
Koso D2 Multi-Function Gauge
Equipped with an 8-color changeable LCD display, the plug and play D2 meter features a tach and speedo combo with a programmable shift light and includes a gear indicator for easily seeing what gear you’re in.
This gauge also features vital readings such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor your bike’s vital signs. This gauge will fit directly into the stock harness and works directly with your bike’s CANBUS system.

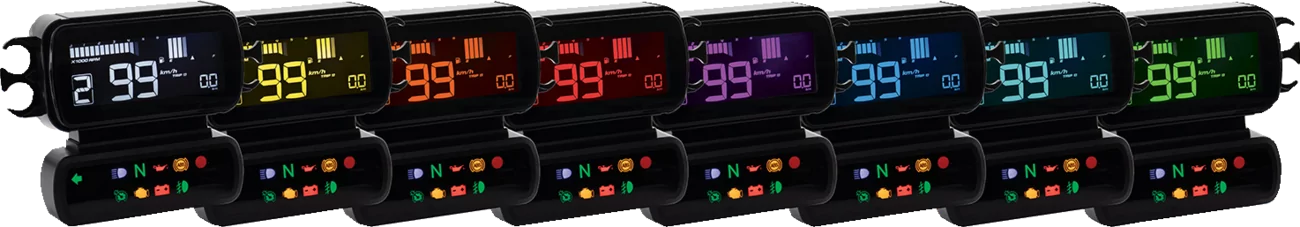

- High quality plug & play meter that is equipped with an 8-color changeable LCD display

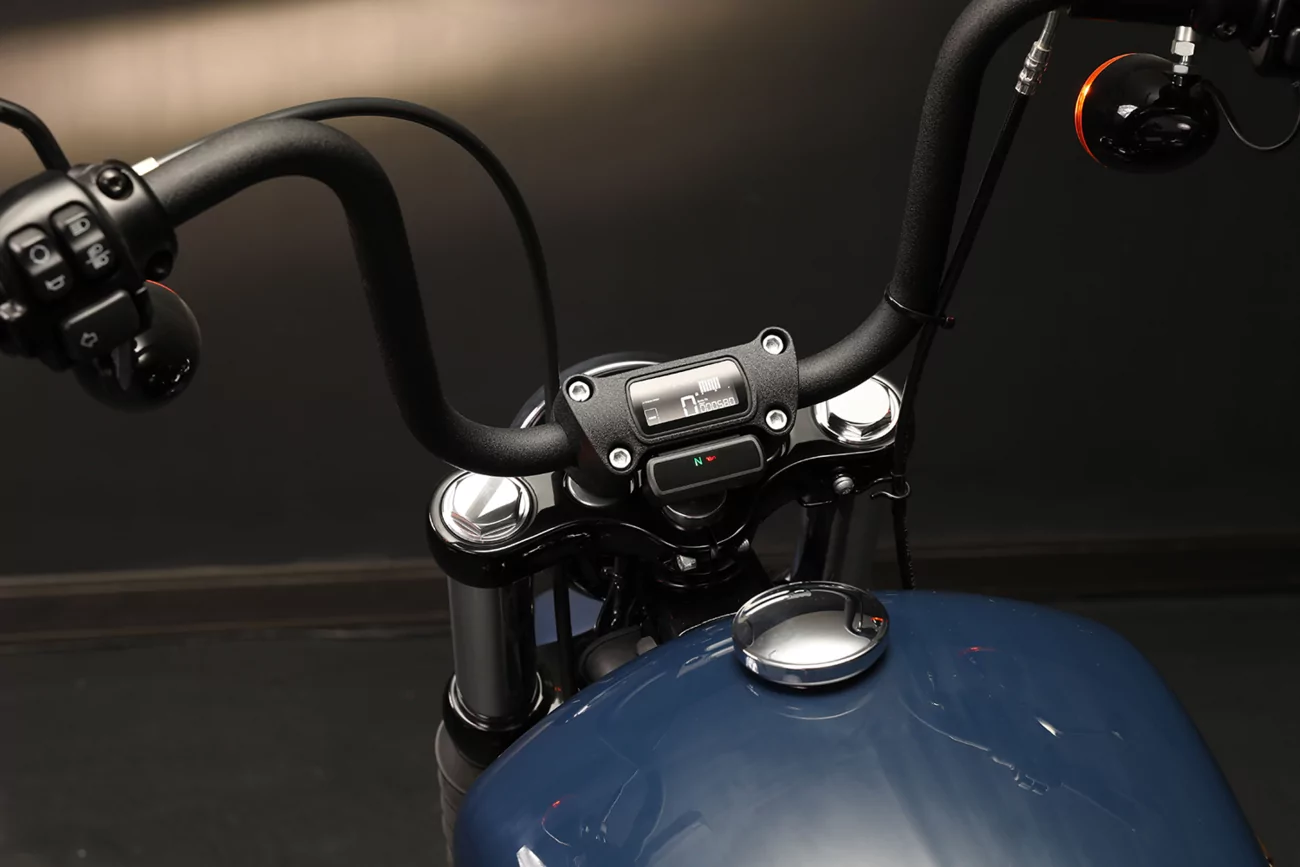

- Designed to mount below cutout top handlebar clamp for a sleek look (handlebar riser kit with gauge cutout or gauge relocation kit may be required depending on application)
- Features a tachometer/speedometer combination with a programmable shift light and includes gear indicator
- Features vital reads such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor vital signs on bike

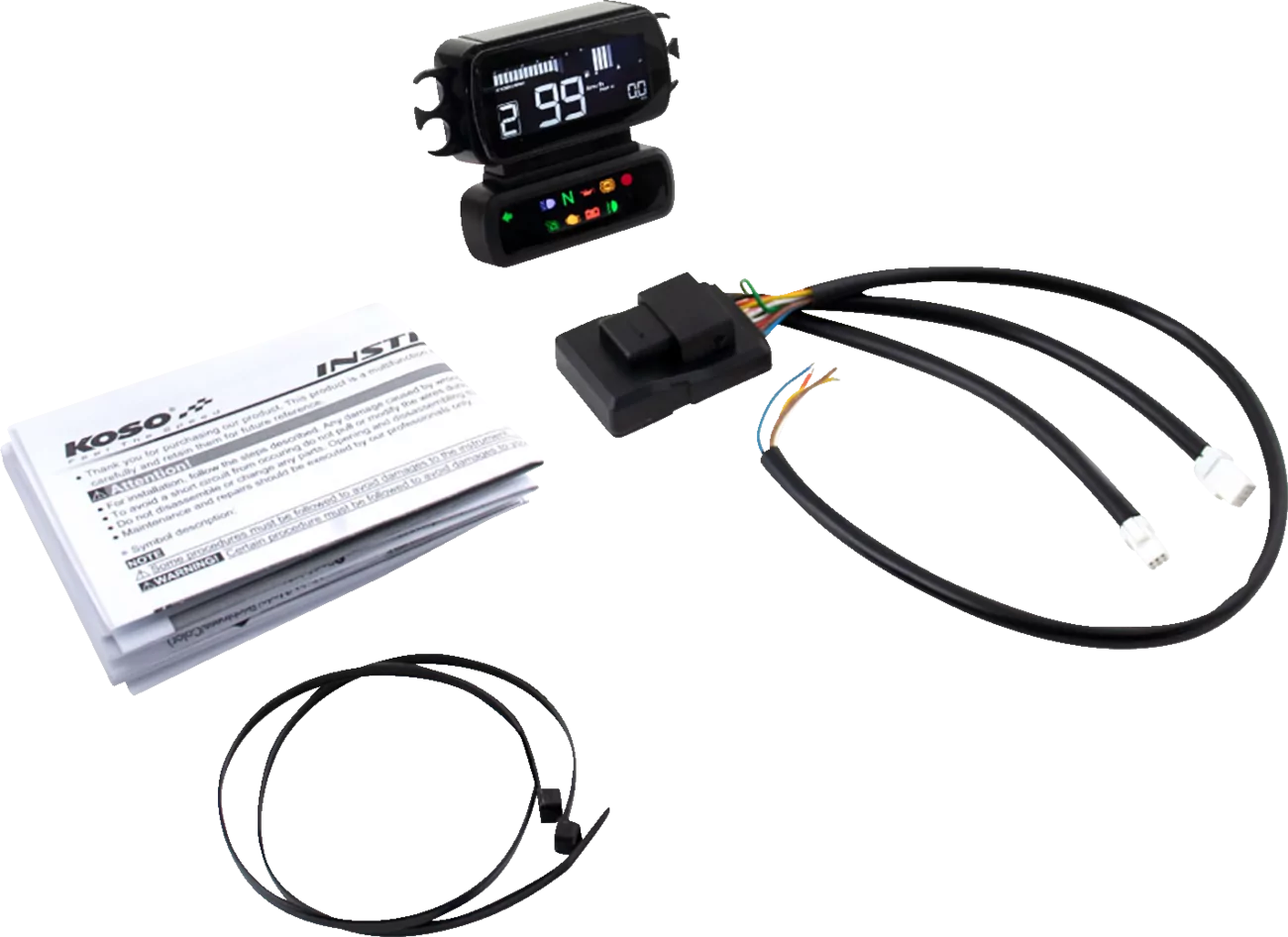

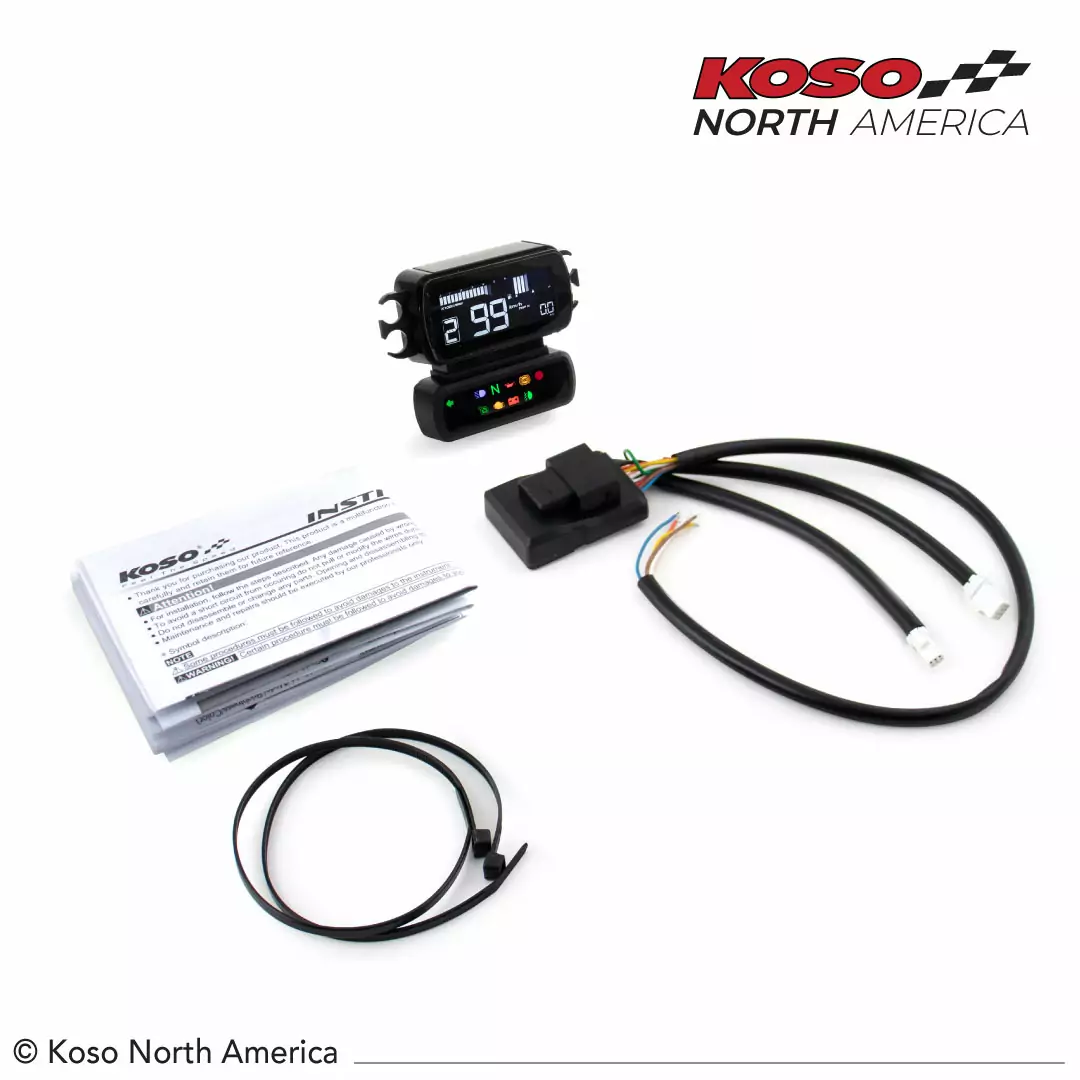

- Plugs directly into the stock harness and works directly with CANBUS system
- Display range: 0-124 mph
- Effective temperature range: -4°F-185°F (-20°C-85°C)
- 12VDC battery voltage

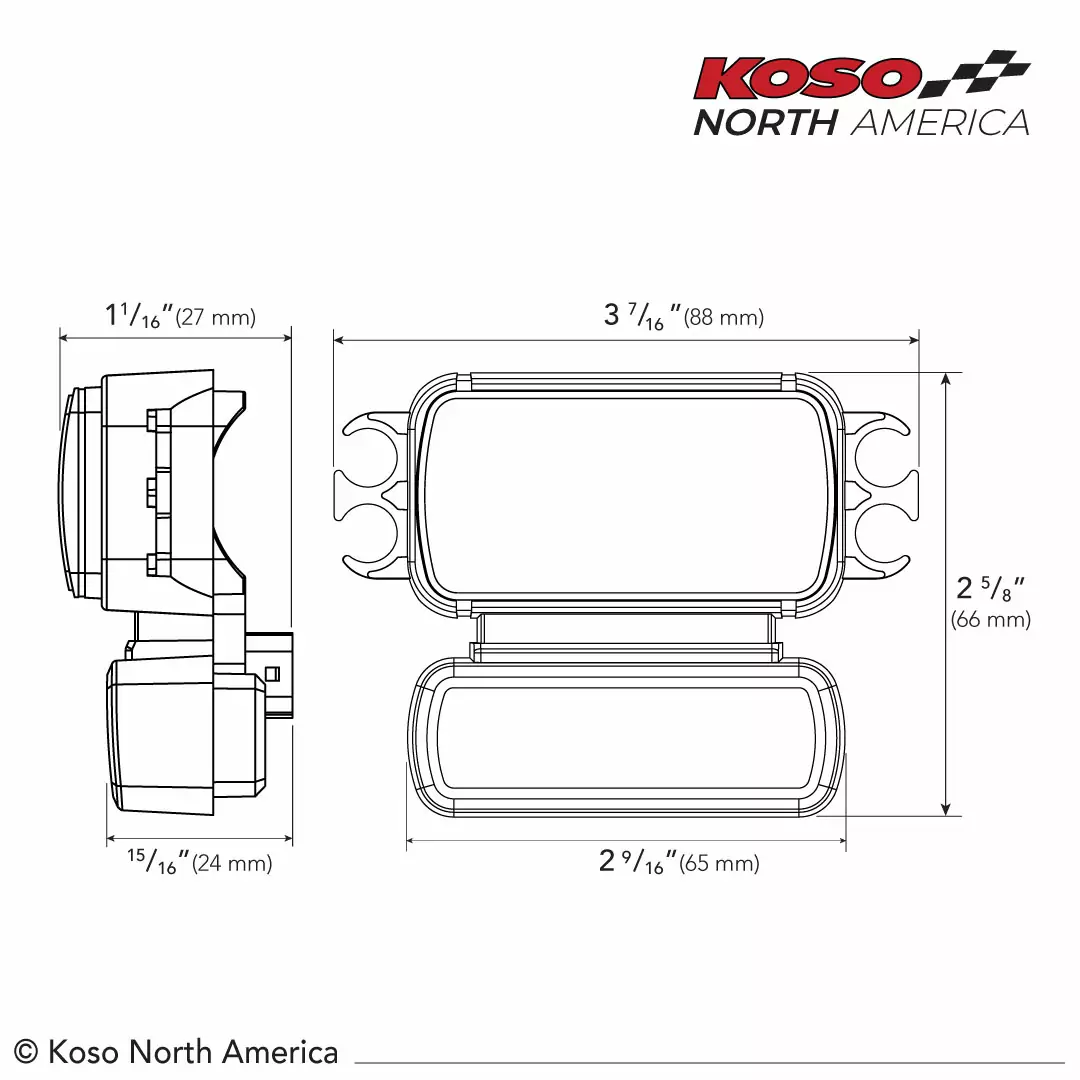

- Measures 3-7/16” L x 1-1/16” W x 2-5/8” H
- XL models may require purchase of separate fuel level sensor kit (OEM PART #6120008) for fuel meter to function properly.
- *To access settings on CVO models, you must turn ON the run/stop switch so that the bike will not turn off. Then you can make your adjustments to the settings on the gauge.
Specs:
- Speedometer
R: 0~199 km (0~124 mile) switchable
U: 1 km (mile) - Display interval
<0,5 second - Internal and external odometer
R: 000,000 ~ 999,999 km (mile) returns to zero upon exceeding
U: 0,1 km (mile) - Trip meter A,B
R: 0,000,0 ~ 9,999,9 km (mile) returns to zero upon exceeding
U: 0,1 km (mile) - Tire circumference
R: 50 ~ 210 %
U: 1 % - Tachometer
R: 0 ~ 10,000 RPM
-
- Backlight color

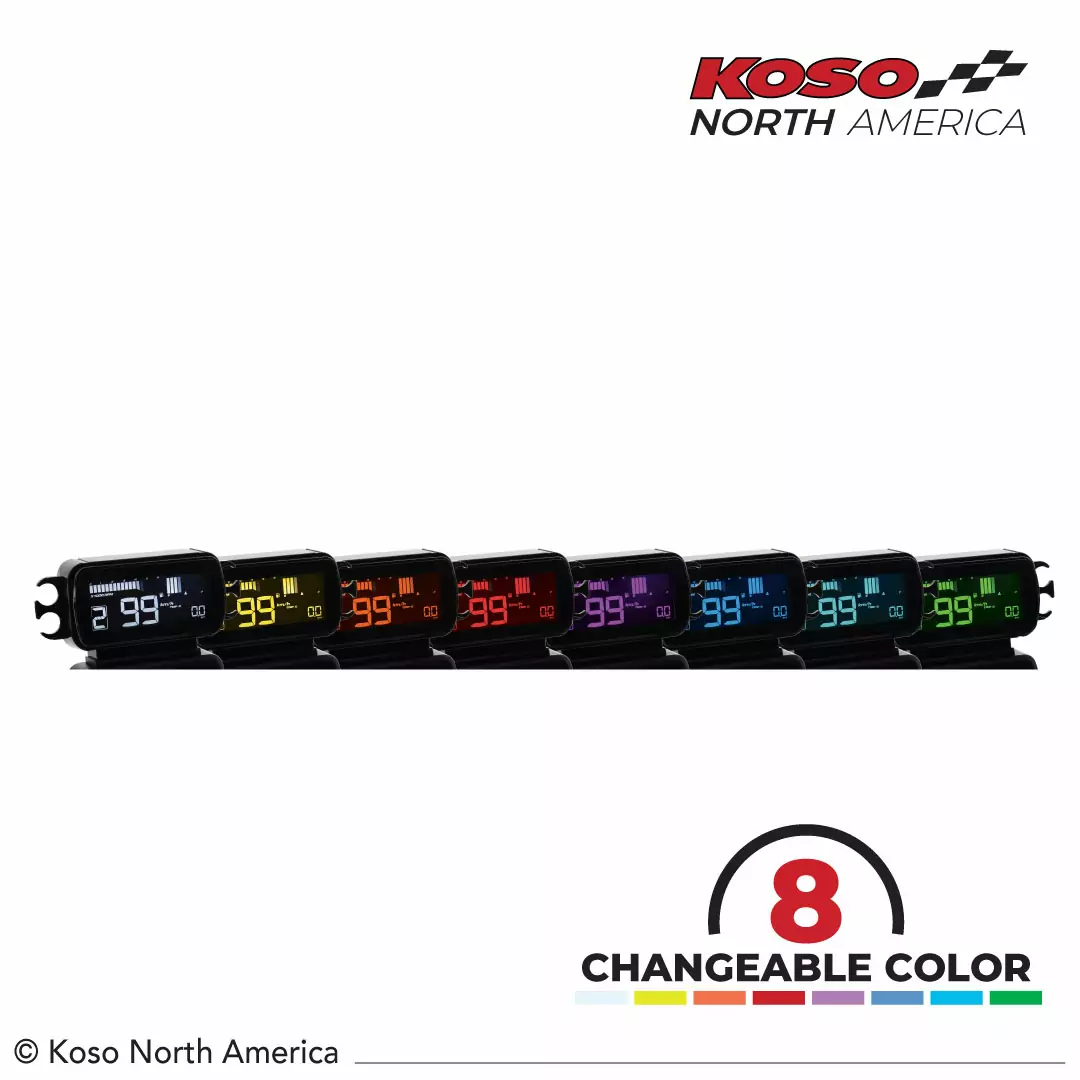

R: white, red, orange, yellow, blue, light blue, purple, green - Mileage maintenance
R: Off, 500 ~ 16,000 km (300 ~ 10,000 mile)
U: 100 km (miles) - Indication light

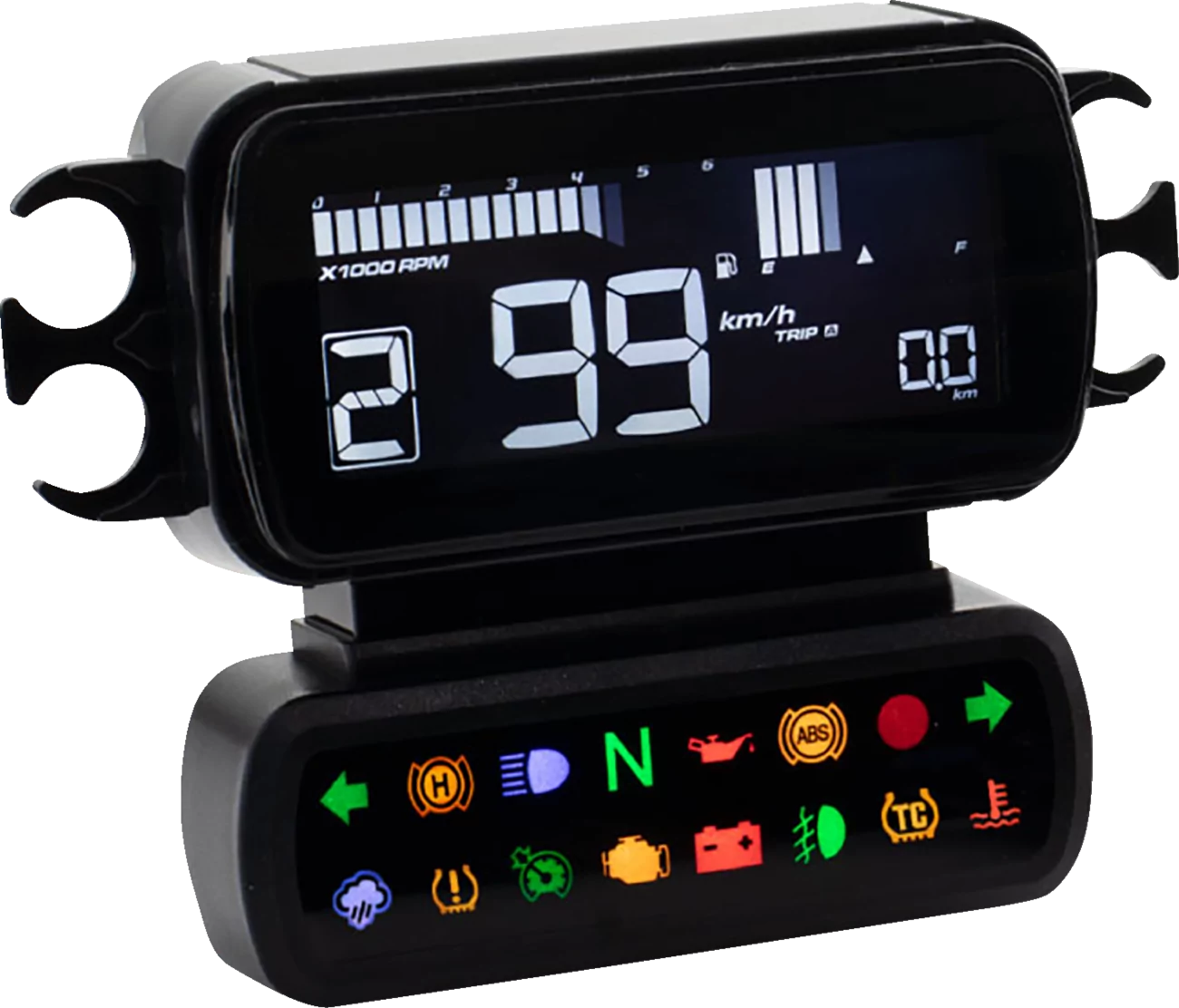

R: Traction control (Amber) / Right indication light (Green) / Security light (Red) / ABS light (Amber) / Motor oil light (Red) / Neutral light (Green) / High beam light (Blue) / Low fuel warning light (Amber) / Left indication light (Green) / Fog light (Green) / Battery discharge light (Red) / Engine light (Amber) / Cruise light (Green/Amber) / Tire pressure warning light (Amber)
- Backlight color
- Shift light warning
R: 2,000 ~ 10,000 RPM
When it is higher than the setting value (including),
the backlight will blink in re and white as a warning
U: 100 RPM - Engine temperature
R: -38 ~ 572 °F (-39 ~ 300 °C) - Clock
R: 12 / 24 hour format - Voltmeter
R: 8 ~ 18 V - Backlight brightness
R: 1/5 (darkest) ~ 5/5 (brightest) - Meter weight
Around 70g
-
- Tire pressure
(TPMS, FR/RR/LR shall be displayed when the vehicle supports TPMS)
R:—, HI, 0 ~ 73 PSI, 0~506 kPa, 0,0~5,0 bar
U: 1 PSI, 1 kPa, 0,1 bar - Fuel Meter
R: 10 levels - Operating voltage
DC 12 V - Operating temperature
-20 ~ 85 °C - Storage temperature
-30 ~ 90 °C - Specifications
JIS D 0203 (S2) - Meter size
88,2 x 67,0 x 35,2 mm
- Tire pressure
Fitment Guide

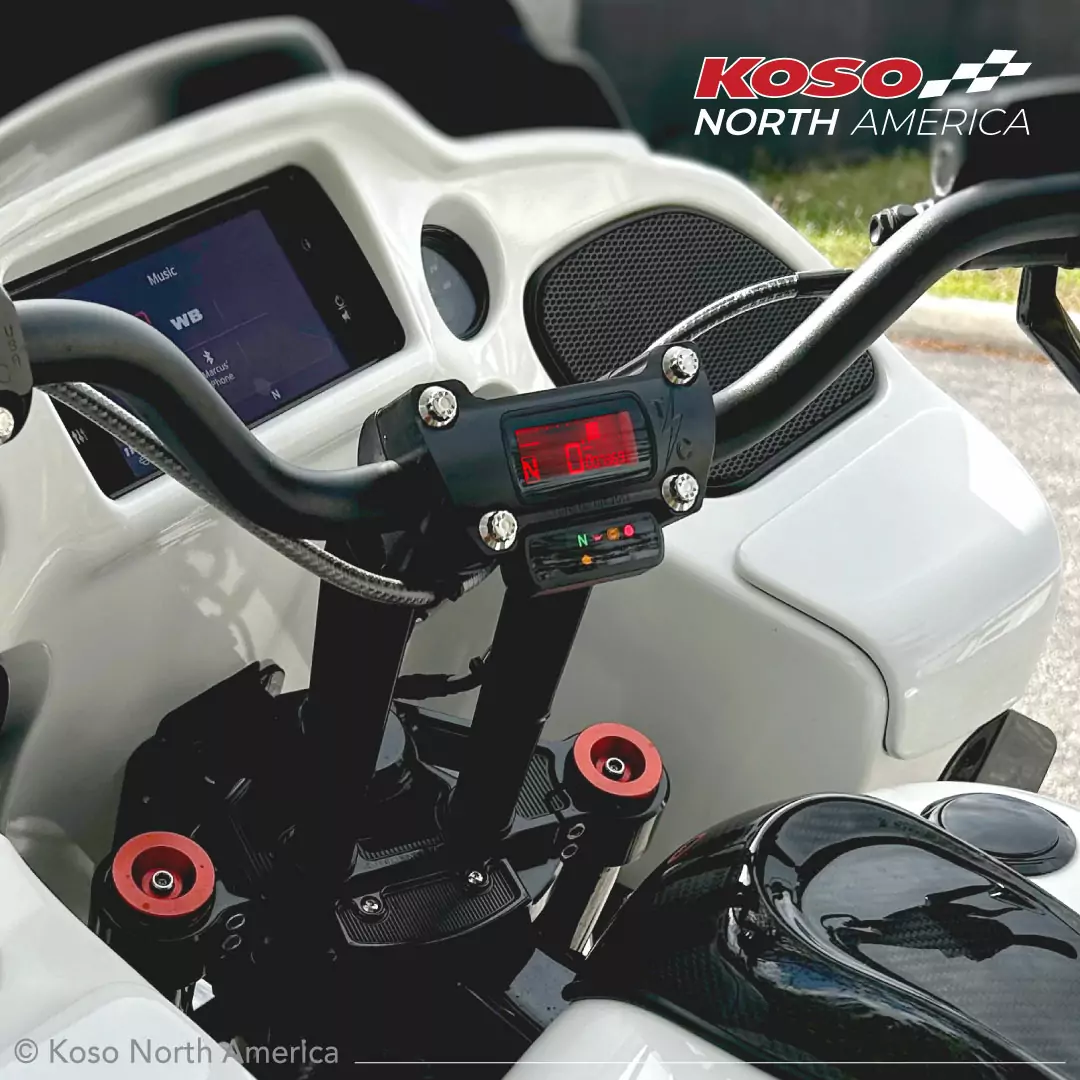

14-23 Bagger fits:
| 2022-2023 | Harley-Davidson | Road Glide Limited FLTRK | – | – |
| 2022-2023 | Harley-Davidson | Street Glide ST FLHXST | – | – |
| 2022-2023 | Harley-Davidson | Road Glide ST FLTRXST | – | – |
| 2021 | Harley-Davidson | Electra Glide Revival | – | – |
| 2020-2022 | Harley-Davidson | Electra Glide Standard EFI FLHTI | – | – |
| 2016-2019 | Harley-Davidson | Road Glide Ultra FLTRU | – | – |
| 2015-2023 | Harley-Davidson | Street Glide Special FLHXS | – | – |
| 2015-2023 | Harley-Davidson | Road Glide Special FLTRXS | – | – |
| 2015-2023 | Harley-Davidson | Road Glide Custom FLTRX | – | – |
| 2015-2019 | Harley-Davidson | Electra Glide Ultra Limited Low FLHTKL | – | – |
| 2015-2016 | Harley-Davidson | Electra Glide Ultra Classic Low FLHTCUL | – | – |
| 2014-2023 | Harley-Davidson | Electra Glide Ultra Limited FLHTK | – | – |
| 2014-2023 | Harley-Davidson | Street Glide EFI FLHX | – | – |
| 2014-2019 | Harley-Davidson | Electra Glide Ultra Classic EFI FLHTCUI |
18-24 Softail fits:
| 2022-2024 | Harley-Davidson | Softail Standard FXST | – | – |
| 2022-2024 | Harley-Davidson | Softail Low Rider ST FXLRST | – | – |
| 2018-2022 | Harley-Davidson | Softail Street Bob FXBB | – | – |
| 2018-2020 | Harley-Davidson | Softail Breakout 114 FXBRS | – | – |
| 2018-2019, 2023-2024 | Harley-Davidson | Softail Breakout FXBR |
