Description

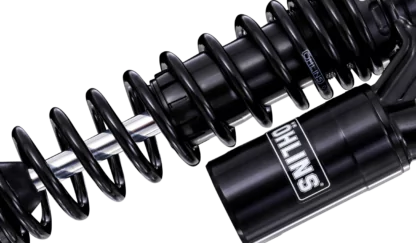

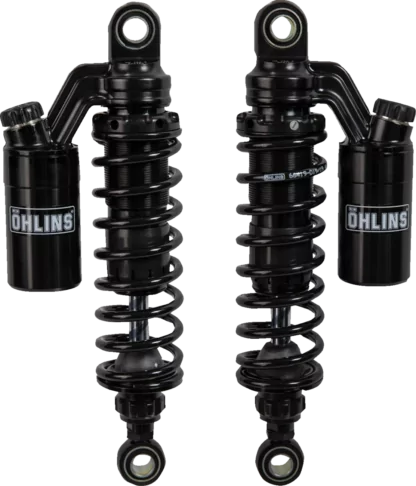

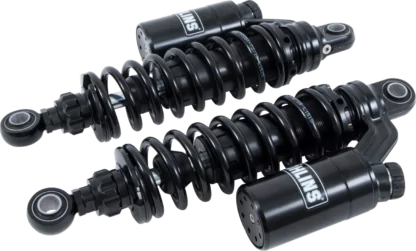

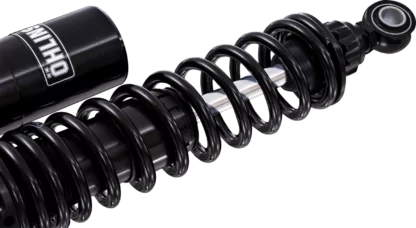

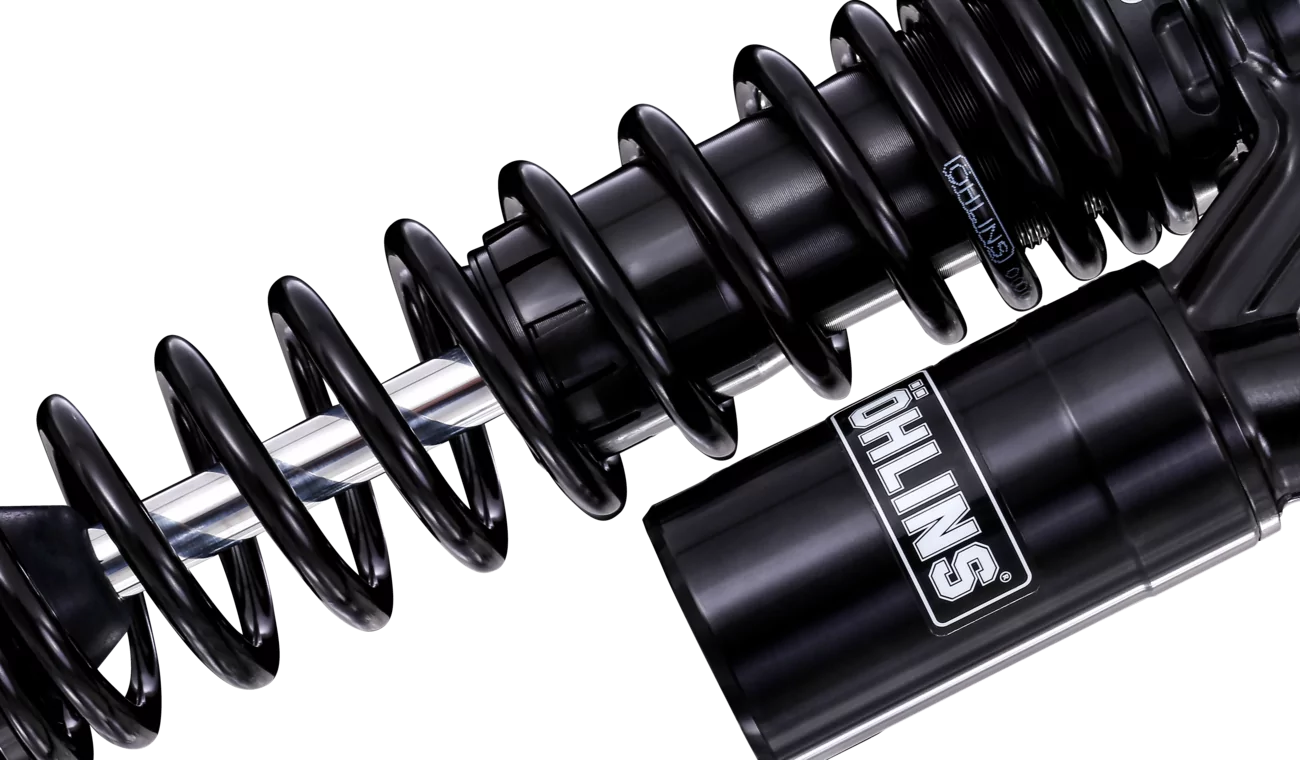

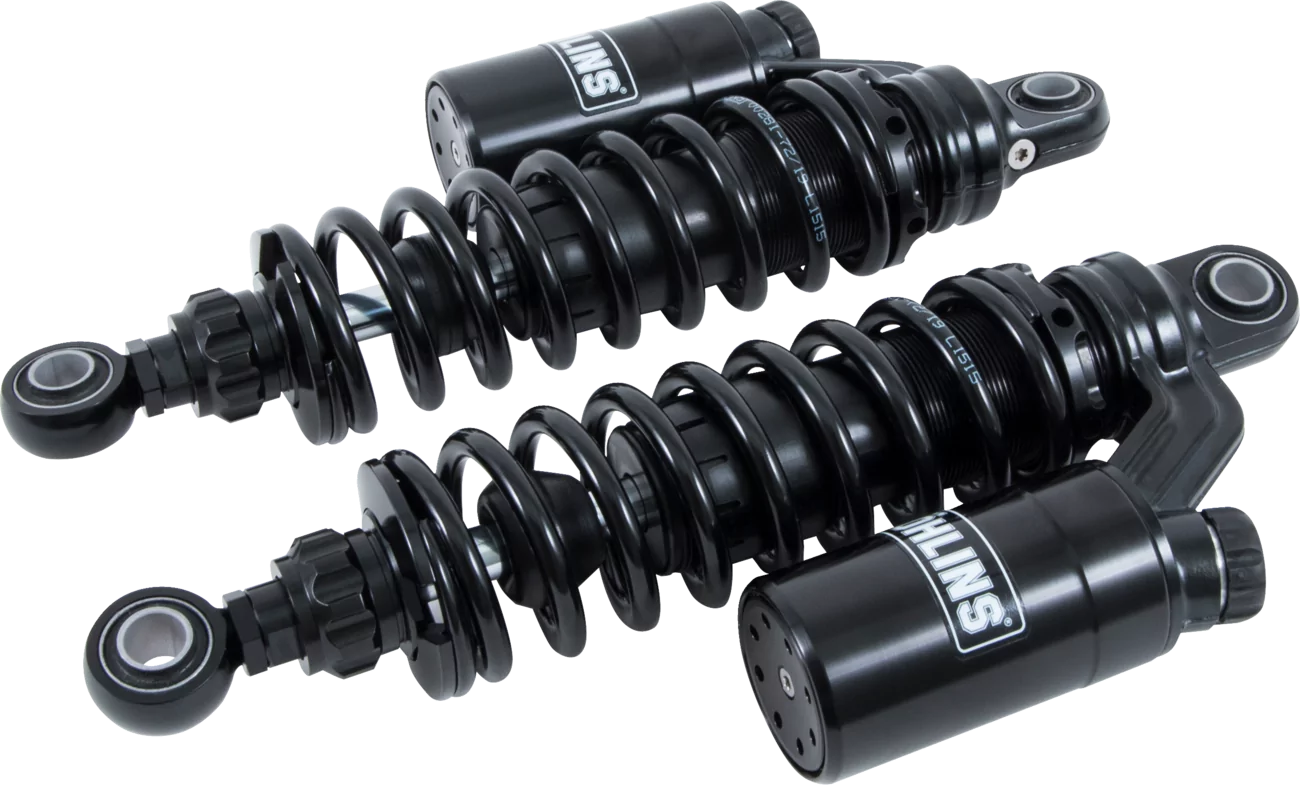

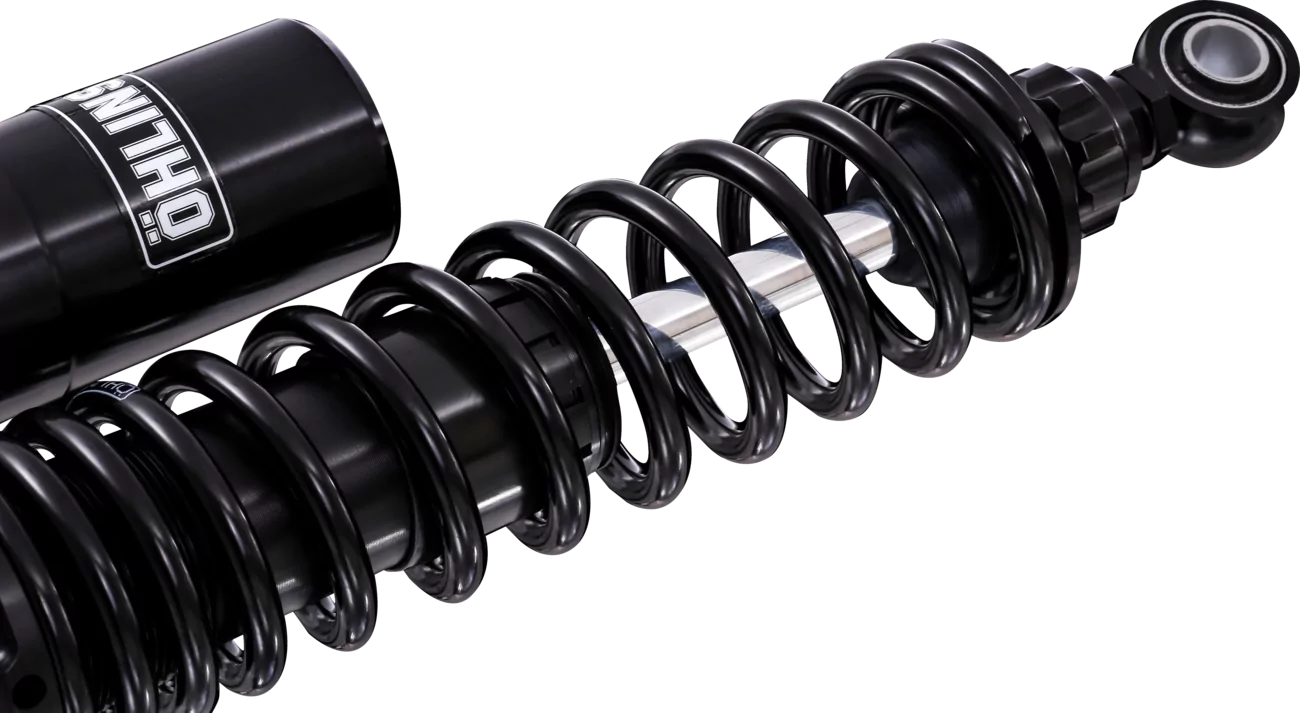

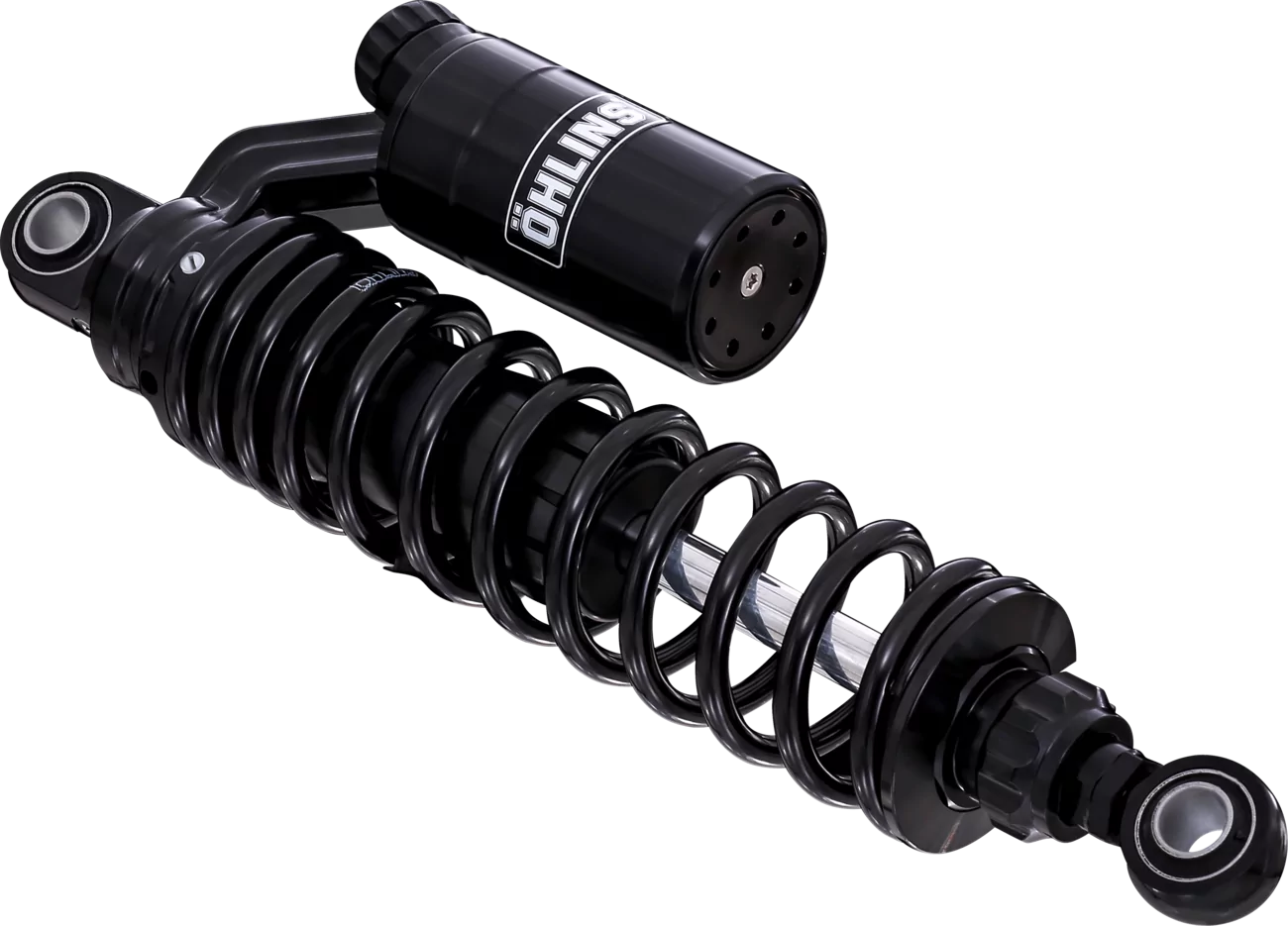

Öhlins STX 36 Twin Shocks for Dyna
The classic monotube design of Öhlins STX36P will deliver top notch ride comfort and performance for your Dyna. Models include dividing piston on piggyback reservoir versions.
- Adjustable rebound and compression damping

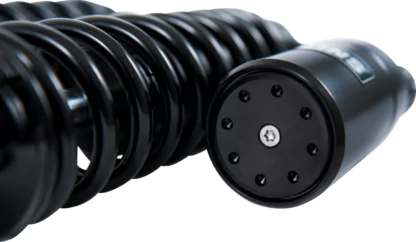

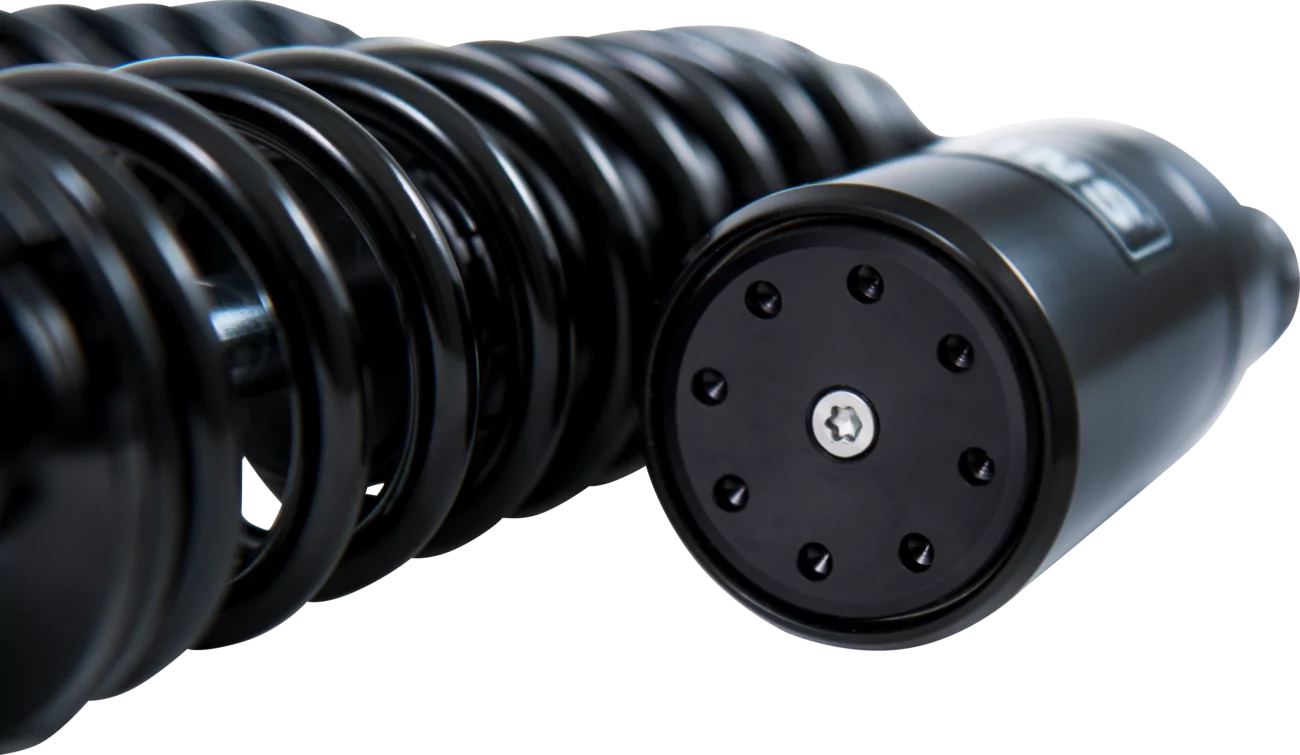

- Monotube shock with piggyback reservoir
- Length adjustable – 1/2″
- High pressure nitrogen gas charged
- STX single tube design
- 36 mm piston diameter
- Adjustable preload with billet tool
- Multiple spring rates available to accommodate a wide range of riders
- Top level comfort, rideability, and performance
- Hard anodized – precision CNC-Machined components
- Low-friction shaft / Seal head design
- Fully serviceable and repairable
12″ length features:
- Spring: Ohlins Part # 66419-032
- Stroke length: 2.677″
- Weight range: 150 lb min – 400 lb max
13″ length features:
- Spring: Ohlins Part # 66422-032 (B)
- Adjustment range: 0.393″
- Stroke length: 3.583″
- Weight range: 150 lb min – 400 lb max
Mounting instructions HERE.
More Dyna shocks HERE.
Fitment Guide
| 2016-2017 | Harley-Davidson | Low Rider S FXDLS | – | – |
| 2010 | Harley-Davidson | CVO Fat Bob FXDFSE2 | – | – |
| 2009 | Harley-Davidson | CVO Fat Bob FXDFSE | – | – |
| 2008-2017 | Harley-Davidson | Fat Bob FXDF | – | – |
| 2008 | Harley-Davidson | Screamin’ Eagle Dyna FXDSE2 | – | – |
| 2007 | Harley-Davidson | Screamin’ Eagle Dyna FXDSE | – | – |
| 2006-2017 | Harley-Davidson | Street Bob FXDB | – | – |
| 2006 | Harley-Davidson | Super Glide FXD35 | – | – |
| 2005-2014 | Harley-Davidson | Super Glide Custom EFI FXDCI | – | – |
| 2005 | Harley-Davidson | Super Glide Custom FXDC | – | – |
| 2004-2010 | Harley-Davidson | Super Glide EFI FXDI | – | – |
| 2004-2009, 2014-2017 | Harley-Davidson | Low Rider EFI FXDL | – | – |
| 2004-2005 | Harley-Davidson | Super Glide Sport EFI FXDXI | – | – |
| 2002 | Harley-Davidson | Wide Glide FXDWG3 | – | – |
| 2001-2003 | Harley-Davidson | Super Glide T-Sport FXDXT | – | – |
| 2001 | Harley-Davidson | Wide Glide FXDWG2 | – | – |
| 2000-2008, 2010-2017 | Harley-Davidson | Wide Glide EFI FXDWGI | – | – |
| 1999-2005 | Harley-Davidson | Super Glide Sport FXDX | – | – |
| 1995-2006 | Harley-Davidson | Super Glide FXD | – | – |
| 1995-2000 | Harley-Davidson | Dyna Convertible FXDS-CONV | – | – |
| 1993-2006 | Harley-Davidson | Low Rider FXDL | – | – |
| 1993-2006 | Harley-Davidson | Wide Glide FXDWG | – | – |
| 1992 | Harley-Davidson | Dyna Daytona FXDB | – | – |
| 1992 | Harley-Davidson | Dyna Glide Custom FXDC | – | – |
| 1991 | Harley-Davidson | Dyna Sturgis FXDB |
