Legend AXEO Dyna Front Suspension System

1,099.95

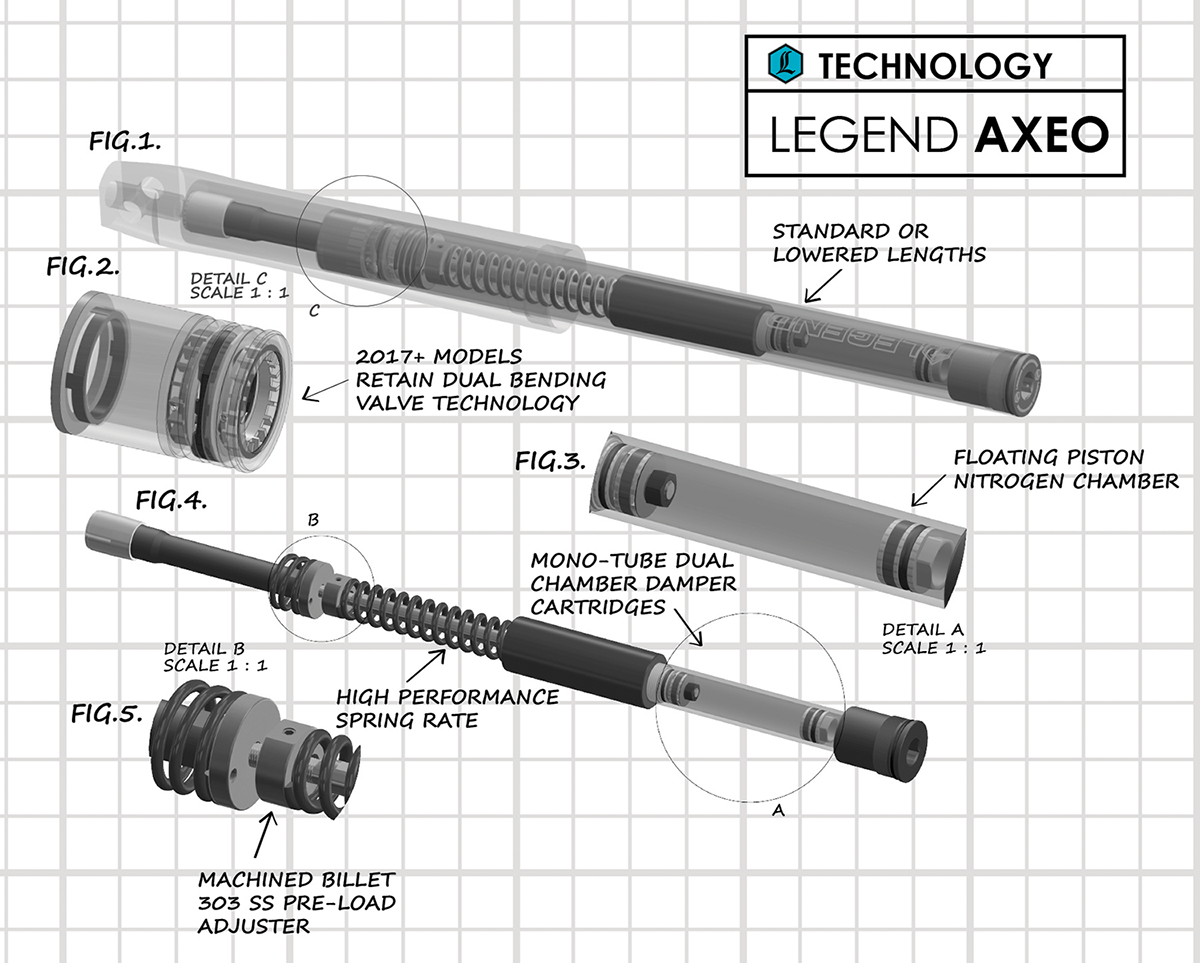

Legend AXEO cartridges incorporates a static sag to shorten overall fork tube length by approximately 1/2″. This results in weight transferred to the front wheel for improved handling.

  • Designed to be used with stock diameter front wheels
  • Easy installation

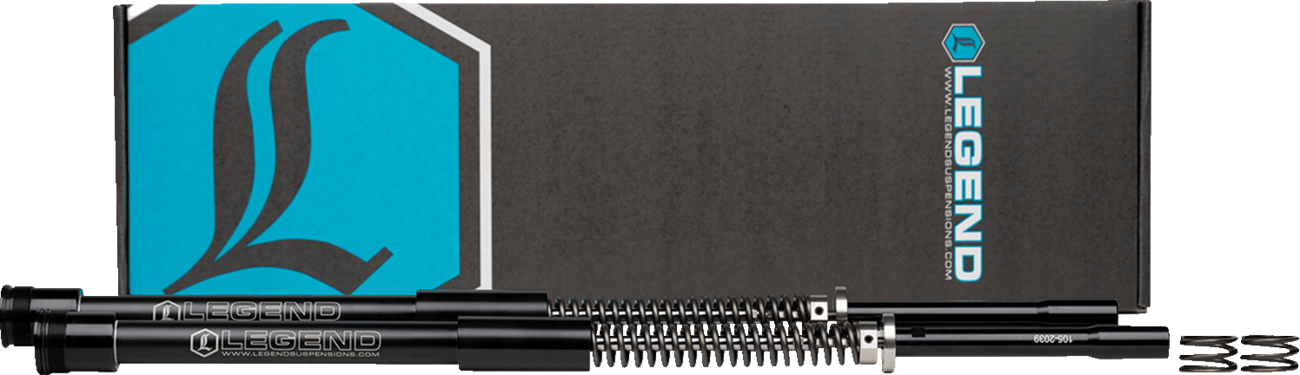

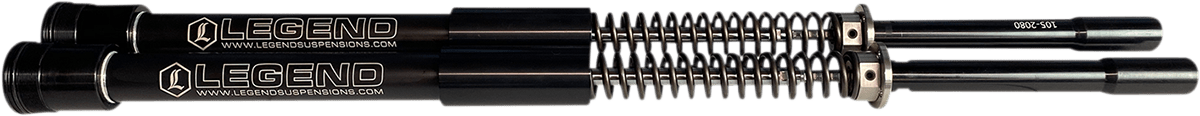

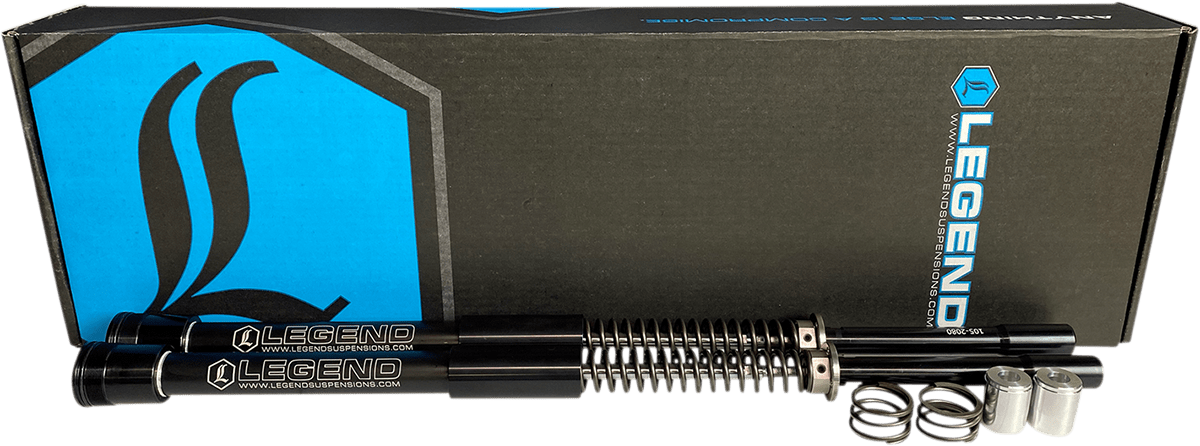

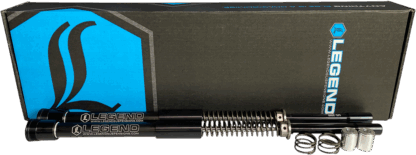

  • Includes two mono-tube, dual chambered damper cartridges and two top out springs
  • Performance spring rate
  • Machined 303 Stainless threaded pre-load adjuster
  • Increased pre-load range allows the tuning for various riding styles and weights
  • Ride quality is smooth and controlled
  • Improves stability, cornering and traction
  • Eliminates front-end dive during aggressive braking and maneuvering
  • Firm feel for high-speed sweeping turns
  • Eliminates bottoming out on large bumps or potholes
  • Reduces dragging floorboards and pegs
  • Designed for optimum performance with Legend rear suspensions
  • Lifetime Warranty
  • Made by hand in Sturgis, SD USA

Scroll down for complete fitment guide.

Description

Legend AXEO Dyna Front Suspension System

Legend AXEO cartridges incorporates a static sag to shorten overall fork tube length by approximately 1/2″. This results in weight transferred to the front wheel for improved handling.

  • Designed to be used with stock diameter front wheels
  • Easy installation
  • Includes two mono-tube, dual chambered damper cartridges and two top out springs
  • Performance spring rate
  • Machined 303 Stainless threaded pre-load adjuster
  • Increased pre-load range allows the tuning for various riding styles and weights
  • Ride quality is smooth and controlled
  • Improves stability, cornering and traction
  • Eliminates front-end dive during aggressive braking and maneuvering
  • Firm feel for high-speed sweeping turns
  • Eliminates bottoming out on large bumps or potholes
  • Reduces dragging floorboards and pegs
  • Designed for optimum performance with Legend rear suspensions
  • Lifetime Warranty
  • Made by hand in Sturgis, SD USA

*This product is NOT designed for use with 21″ and 23″ wheels. 16-17 Dyna Lowrider S models require separate purchase of (1) Harley Davidson OEM Part # 45500118 lower retaining bolt to be used in the LH fork leg.

Fitment Guide

06-17 FXD fits:

2016-2017 Harley-Davidson FXDLS Low Rider S
2007-2014 Harley-Davidson FXDC Super Glide Custom
2007-2010 Harley-Davidson FXD Dyna Super Glide
2007-2009, 2015-2017 Harley-Davidson FXDL Dyna Low Rider
2006-2017 Harley-Davidson FXDB Street Bob
2006 Harley-Davidson FXDI35 Dyna 35th Anniversary Super Glide
2006 Harley-Davidson FXDCI Super Glide Custom
2006 Harley-Davidson FXDI Dyna Super Glide

10-17 FXDWG fits:

2010-2017 Harley-Davidson FXDWG Dyna Wide Glide

Video

Additional information

Weight 10 lbs
Dimensions 5 × 34 × 11 in
Application

06-17 FXD Stock Length, 06-17 FXD +2" Overstock Length, 10-17 FXDWG Stock Length
